STL Panel Mount Holder for Dual Anderson Powerpole PP15/PP30/PP45 PP15/45 15/45
STL Panel Mount Holder for Dual Anderson Powerpole PP15/PP30/PP45 PP15/45 15/45
Regular price
$10.00 AUD
Regular price
Sale price
$10.00 AUD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
This is a digital STL file for a 3D printer to print yourself, not a physical finished product.

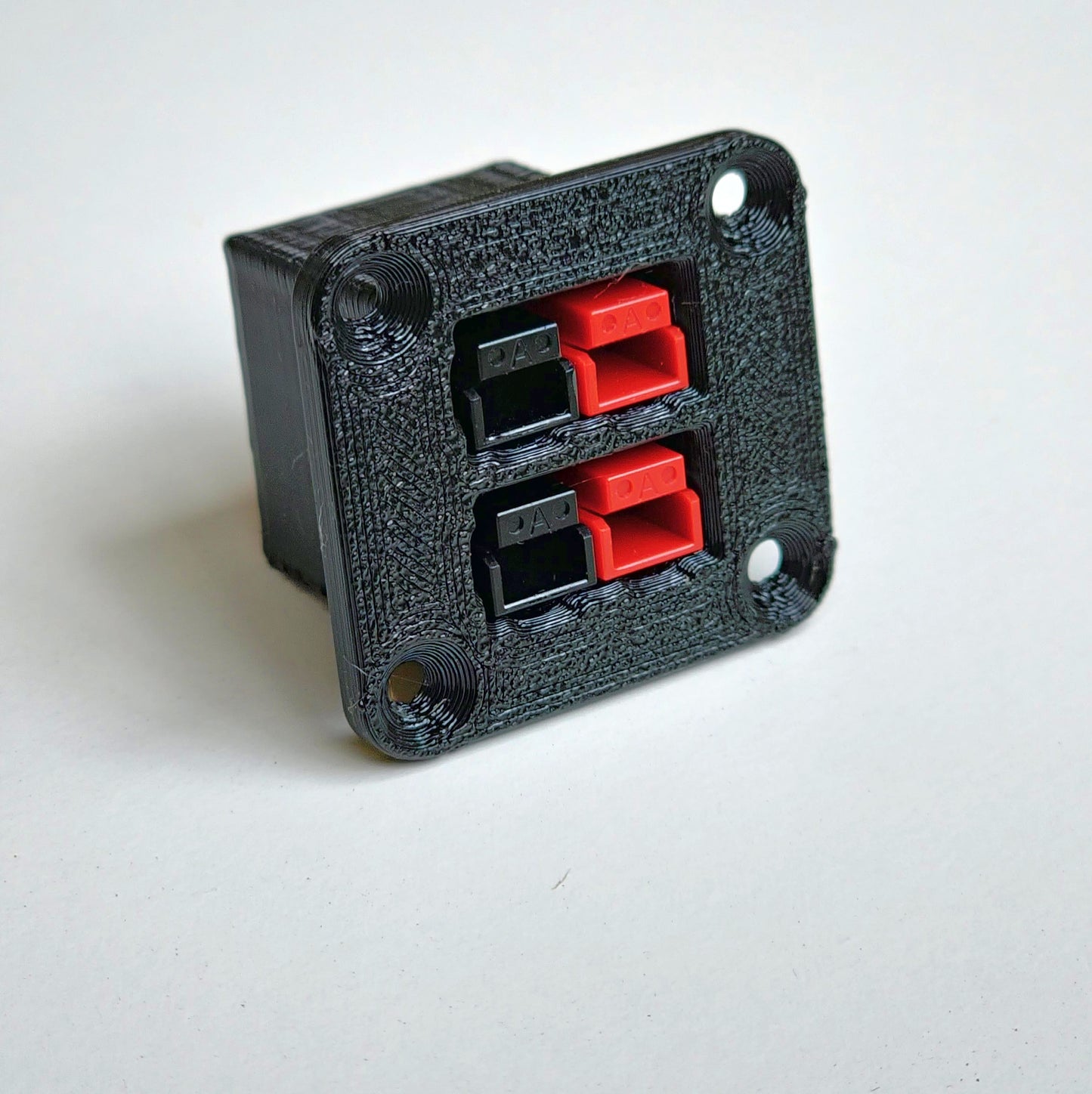

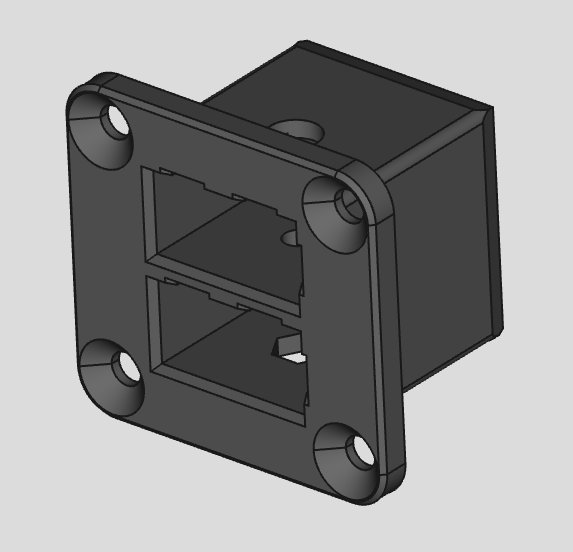

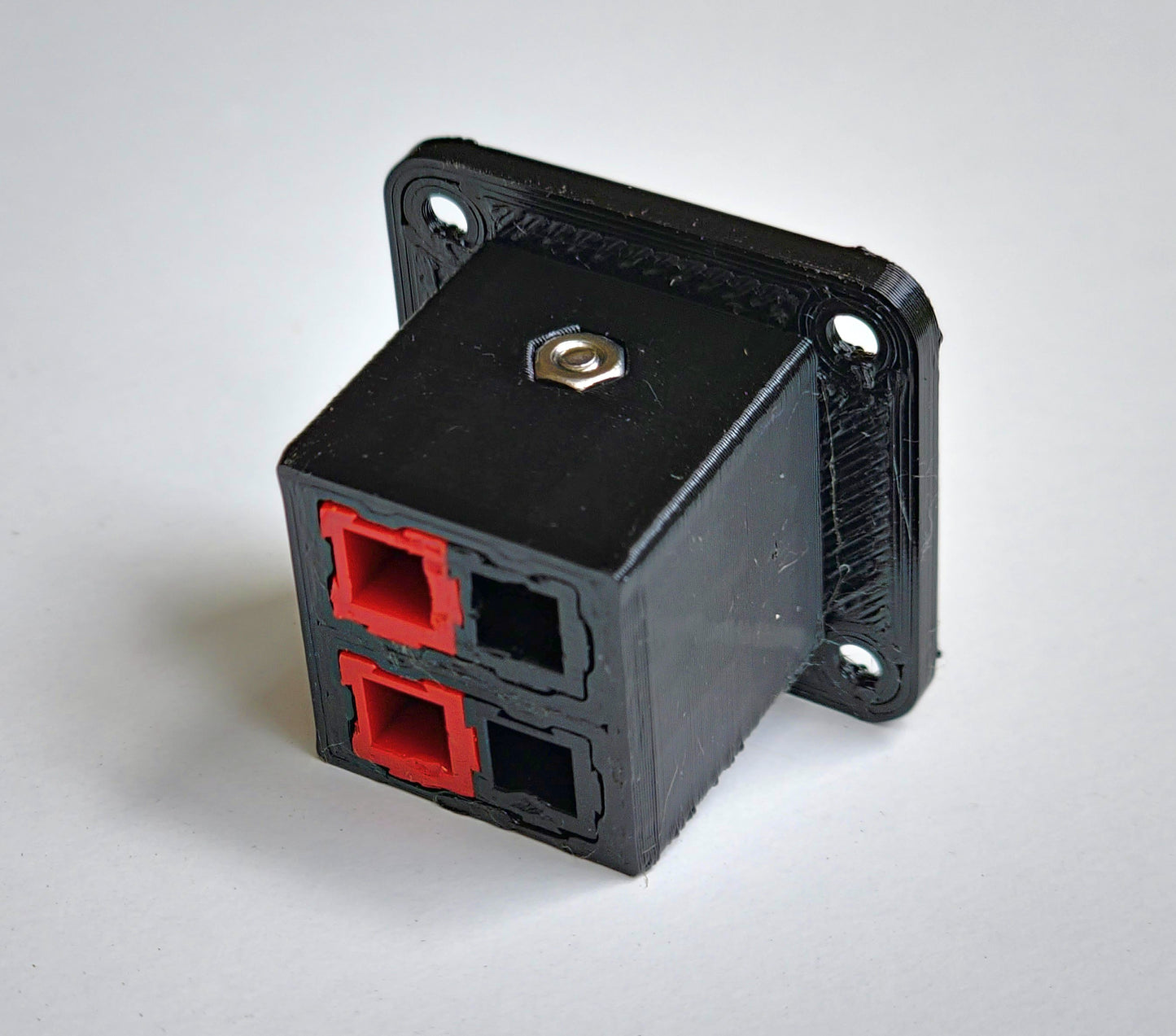

Once printed, this connector holder lets you install dual Anderson PowerPole 15/45 (sometimes referred as PP15 / PP30 / PP45) connectors into a panel.
Dual = Anderson pairs not interlocked & inserted / removed separately.
Recommended settings for Sunlu PETG filament using Creality Ender 3 v2 (tweaking might be required for your filament / printer combination):
Nozzle temp: 230C
Bed temp: 60C
Cooling: 30%
Speed: 40mm/s
Together with this 3D print you need:
- Anderson PP15-45 connector housings & contacts

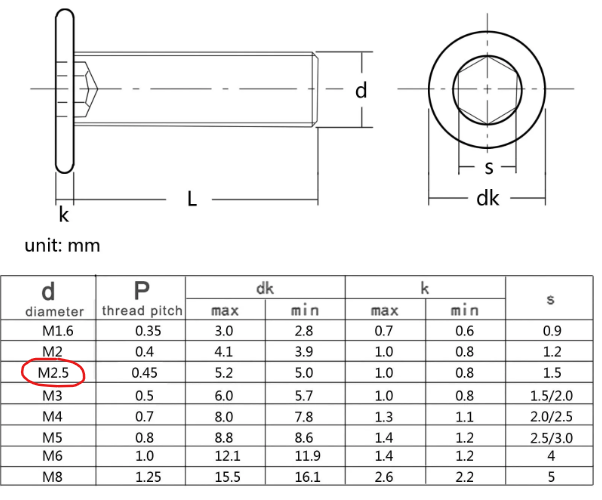

- M2.5 22mm long flat head bolt
- M2.5 flat nut
Outer mount dimensions 35mm x 33mm x 25mm.
Proudly designed in Australia.
